U.S. Military M17 Series Gas Mask Parts
M-17 Repair and Replacement Parts and Accessories
M13 filter set, outsert eyelens, laser protection, outlet valve disks, inlet valve disks and assemblies,
M6A2 hood, waterproof bag.
This site is owned and operated by:

View Items

These parts and accessories are for the M17-series gas mask.
The M17A2 is shown above. All items fit the M17A1 and the M17A2.
All items except the voicemitter cover also fit the M17 (which has no drinking tube)
One of each item shown is offered for the price unless stated otherwise in the description.

All Shipping by U.S. Postal Service
WE SHIP TO U.S. ADDRESSES ONLY!
SEE S&H DETAILS BELOW)

Price and availability subject to change without notice.

back to top

Click on item thumbnail image
to see larger image
or more information.

Thumbnails	Description	Price
	U.S. Army Small Arms Integration Book - CD SAIB Great gift for U.S. military small arms enthusiasts!	$12.95

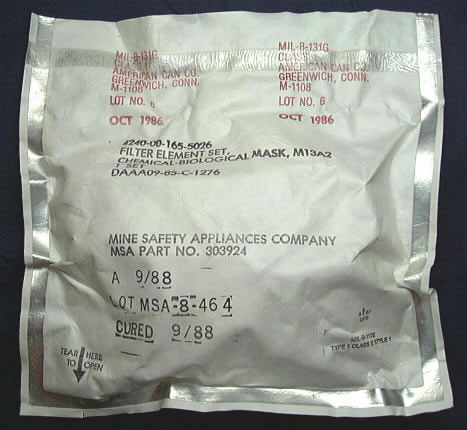

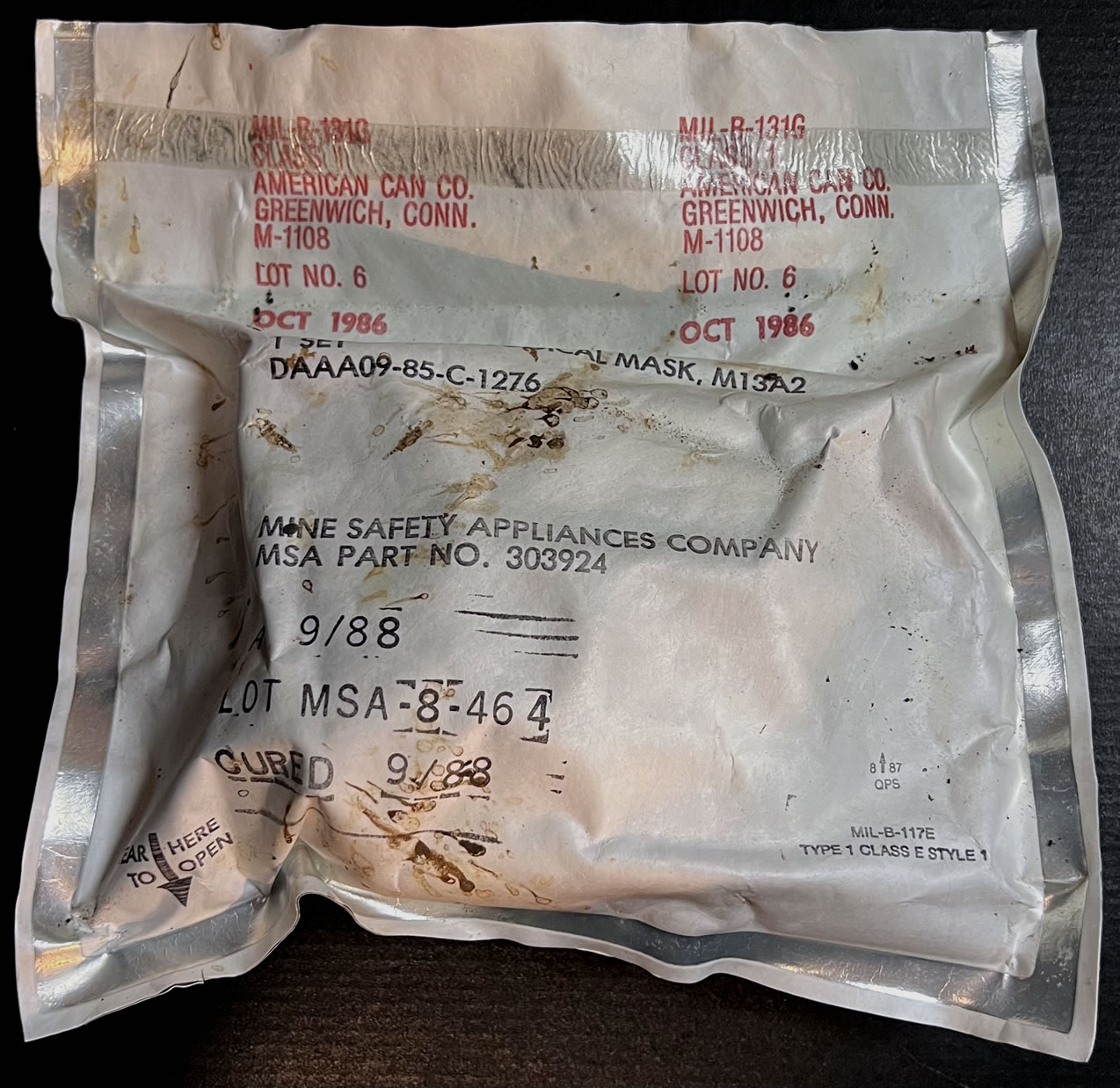

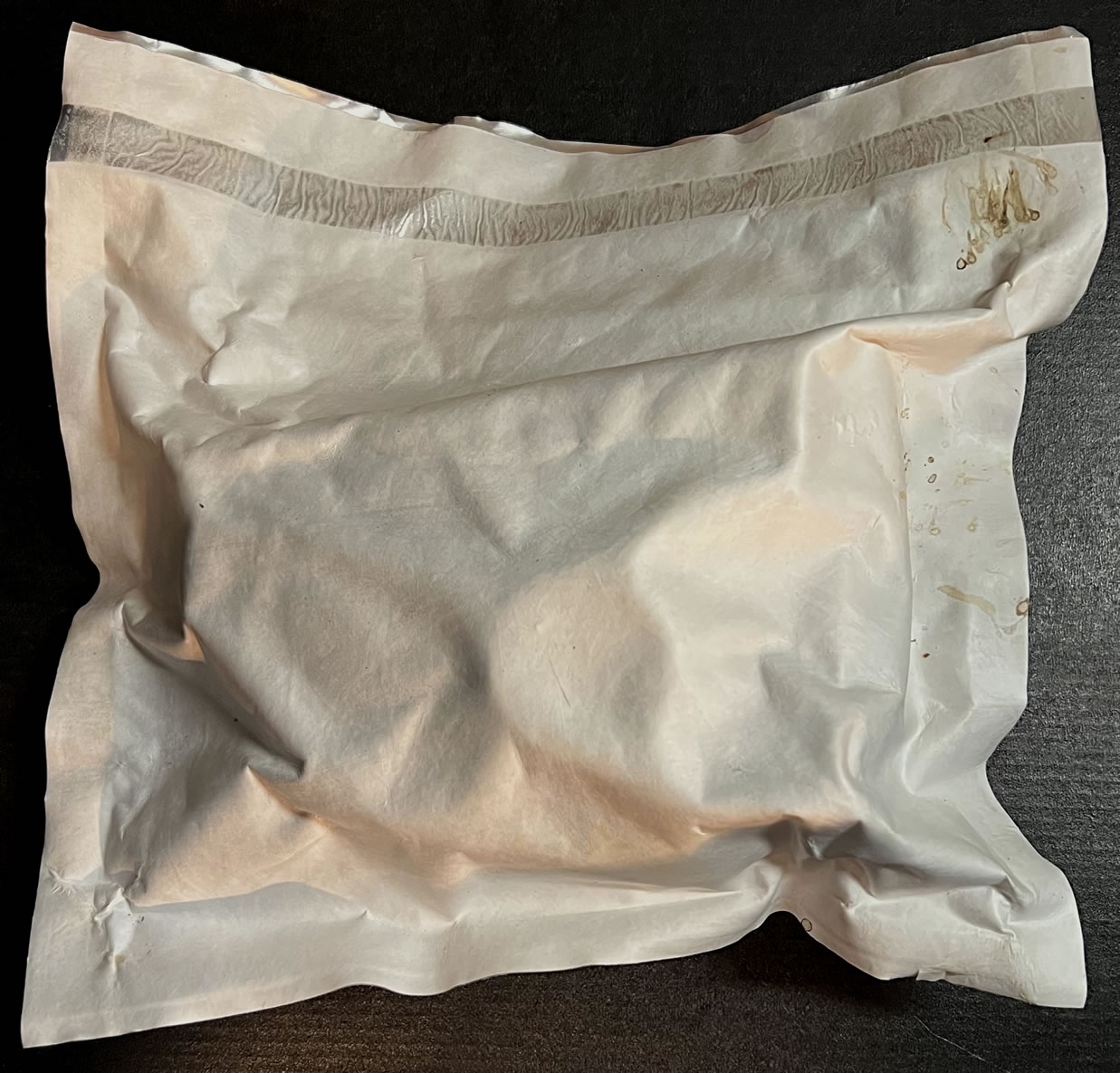

	4240-00-165-5026 FILTER ELEMENT SET CHEMICAL-BIOLOGICAL MASK, M13A2 1 SET FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK (1 pkg - 2 filter elements, 1 left-side and 1 right-side)	$32.95
	M67854-90-C-0295 OUTSERT, EYELENS, LASER PROTECTION LENS 1 PAIR GREEN (NIGHT) FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK (this item provides ballistic protection also, to see details - follow image link)	$26.95

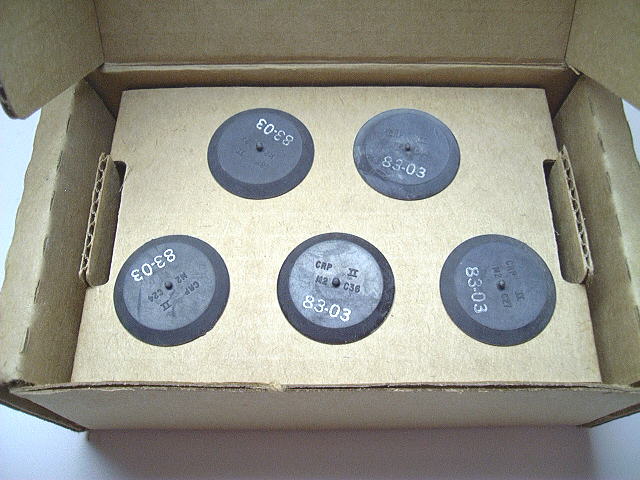

	4240-00-712-6090 DISK, VALVE, OUTLET (1 each, rubber) FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK Note: picture shows 5-each, priced quantity is 1-each!	$14.95

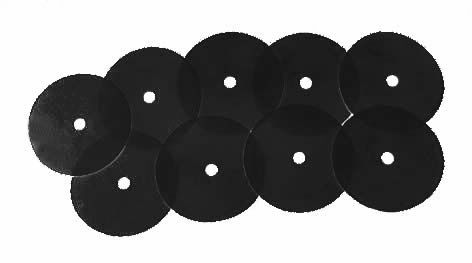

	4240-01-104-0965 DISK, VALVE, INLET (2 each, rubber) FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK Note: picture shows 9-each, priced quantity is 2-each!	$14.95

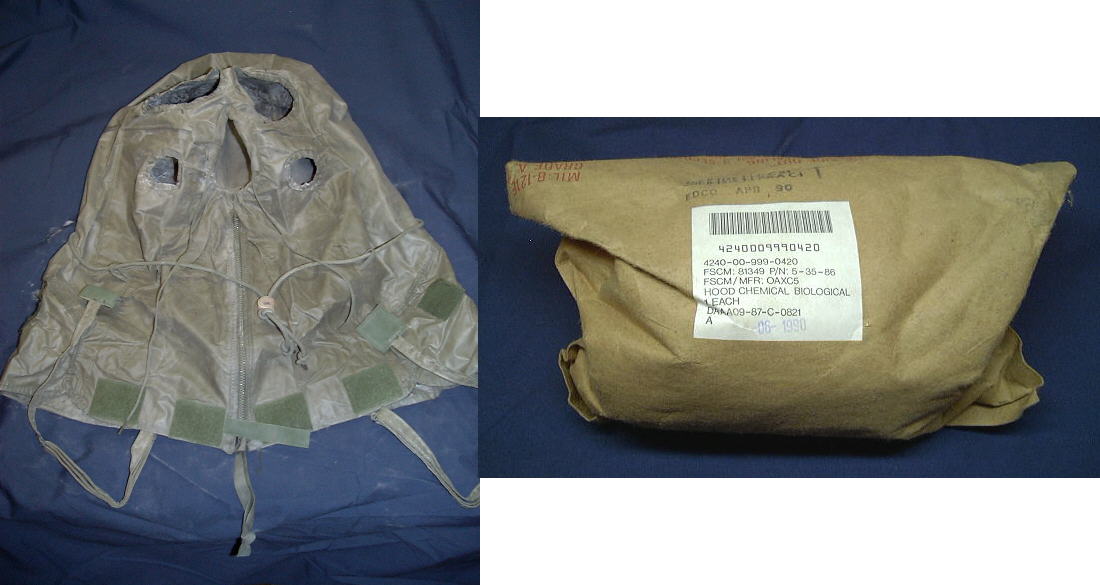

	4240-00-999-0420 HOOD, CHEMICAL-BIOLOGICAL, M6A2 FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK	$29.95

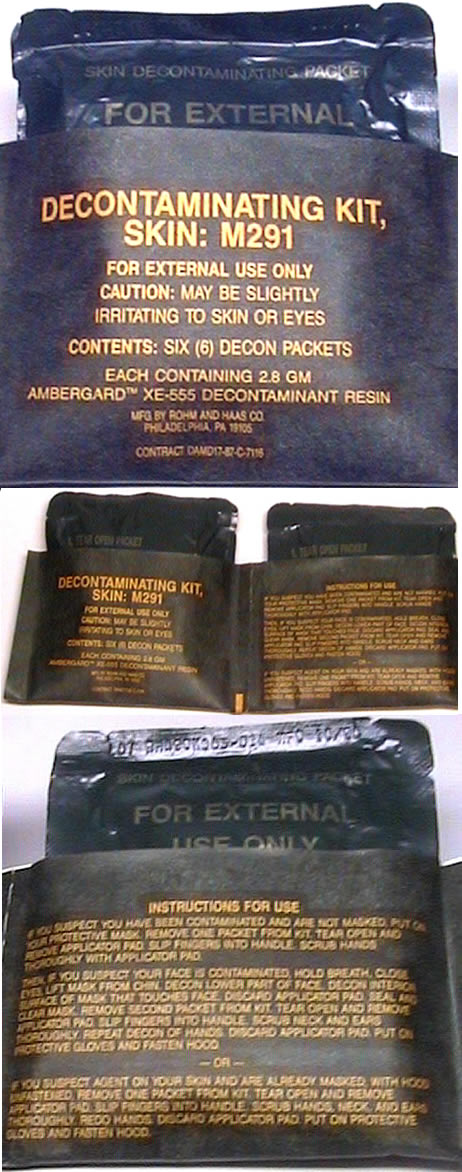

	(SDK) 031-503-1033 DECONTAMINATION KIT, SKIN: M291 CONTENTS: SIX (6) DECON PACKETS EACH CONTAINING 2.8 GM AMBERGARD XE-555 DECONTAMINANT RESIN	$39.95

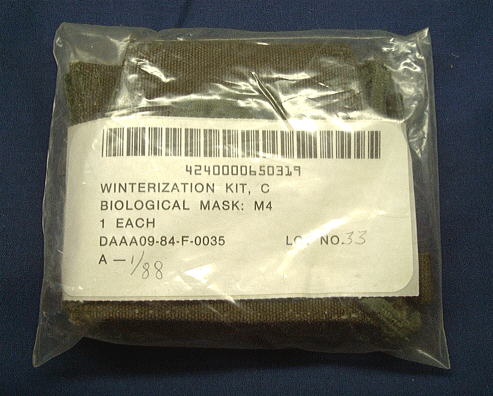

	4240-00-065-0319 WINTERIZATION KIT, C BIOLOGICAL MASK: M4 FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK	$18.95

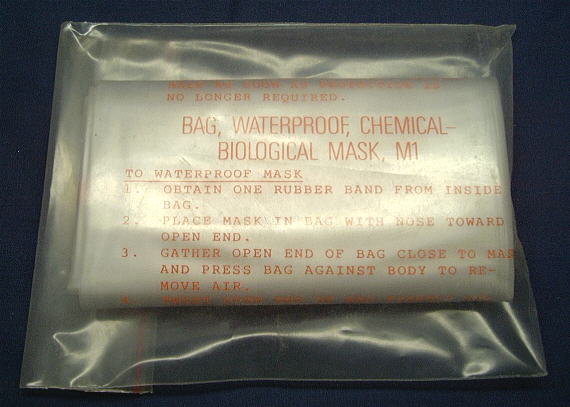

	4240-00-377-9401 BAG, WATERPROOF, CHEMICAL- BIOLOGICAL MASK, M1 FOR ABC-M17, M17A1, AND M17A2 FIELD PROTECTIVE MASK	$18.95



Price and availability subject to change without notice.

back to top

Tracking: (optional) Description Rate Provide U.S.Postal Service Tracking Number to track delivery of your order online $0.65 Tracking number will be sent to you when your order is shipped.

Insurance: (optional coverage provided by USPS, not by M17Mask.com) Insured Value Rate $0.01 to $200.00 FREE Automatic by USPS $200.01 to $300.00 $5.25 $300.01 to $400.00 $6.45 $400.01 to $500.00 $7.65 $500.01 to $600.00 $8.85 $600.01 to $700.00 $10.05 $700.01 to $800.00 $11.25 $800.01 to $900.00 $12.45 Add'l $100.00 or part thereof over $900.00 up to $5,000 (41 max. requires rate 9) $1.20 (each)

back to list
back to top

SHIPPING & HANDLING DETAILS:

Tracking and insurance are optional.
If you want on-line package tracking or insurance for your package then add them to your cart from the table above.

A one-time "Basic Shopping Cart Handling Fee"is applied to your entire cart order when the first item is added that does not have free shipping & handling.
You may view the total shipping and handling for your order at checkout prior to submitting payment for your order.

back to list
back to top

M17-Series Chemical-Biological Mask - Information

An M17-series chemical-biological mask (Figure 1-5), when properly fitted and worn with the hood, protects against field concentrations of all known chemical and biological agents in vapor or aerosol form. Filter elements, in the cheeks of the facepiece, remove the agents from air entering the mask. When the air has a low-oxygen content, such as in tunnels or caves, or when the air has a high level of smoke mixtures, the mask will not protect the wearer. Do not use it for firefighting. It does not protect against ammonia vapors or carbon monoxide. It also is not designed for radiological protection. However, worn properly, it provides added alpha and beta dust inhalation protection, and soldiers should wear it in all known situations until the contamination is identified.

The M17A2 is the standard-A field mask. It is a modification of the M17A1 mask and has no resuscitation tube. Both masks have the following items:

• A voicemitter to facilitate communication.
• A tube for drinking water from the canteen while masked.
• Two outserts to protect the eye lenses and to prevent fogging in low temperatures.
• A carrier for storing and carrying the mask and additional authorized items. Pockets inside the carrier store such items as the nerve agent antidote kit (NAAK), Mark I, and the convulsant antidote for nerve agents (CANA). The exterior pocket of the carrier stores such items as the M1/M1A1 waterproof bag and M8 paper. The M1/M1A1 waterproof bag is used to enclose the mask to protect the filter elements from water damage. An example of use is during river-crossing operations.

Additional authorized items for use with the M17-series mask include the following:

• The ABC-M6A2 field protective mask hood. The hood attaches to the M17-series mask. It protects the head and neck from chemical agent vapors or liquid droplets, biting insects, and radioactive dust particles.
• The M4 mask winterization kit. Use it during cold weather conditions--lower than -20°F (-29°C)--to prevent frost accumulation on the inlet-valve caps.
• Optical inserts. These are provided for soldiers who require vision correction according to AR 40-63. TMs 3-4240-279-10 and 3-4240-279-20&P give instructions on the care and maintenance of these masks.
